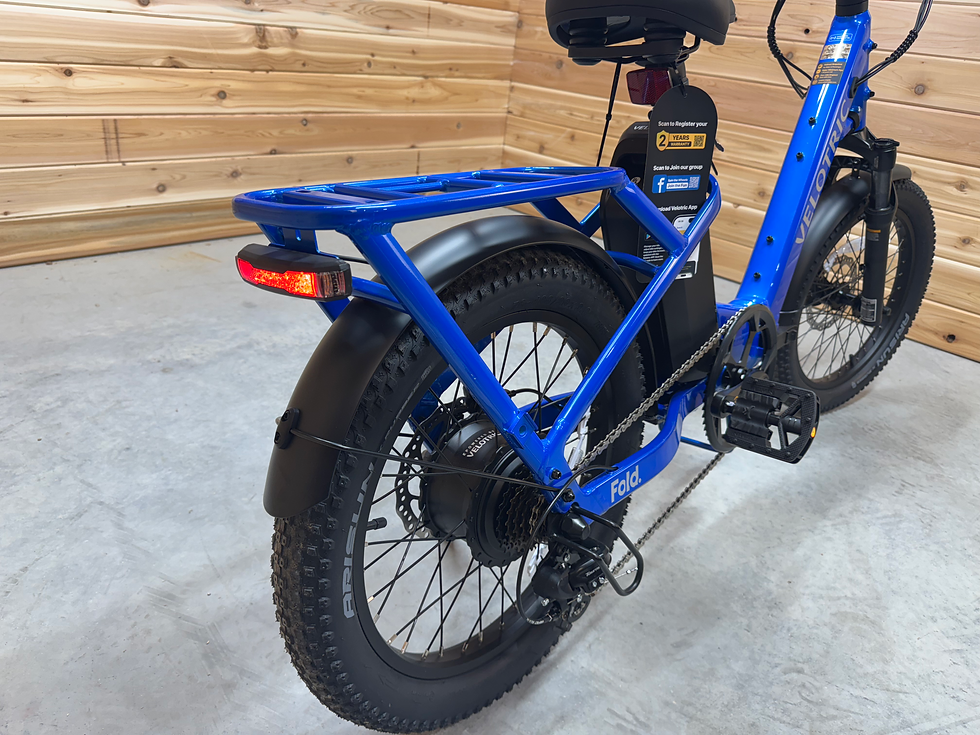

Velotric Fold 1 Plus Ebike
Size & Fit
Size Guide
Bike Size
One Size
User Height Range
4'9'' ~ 6'5''
Electronics
Electronics
Motor Hub
48V, 750W, 75Nm
Battery
Removable 48V, 13Ah, IPX7, Certificated by UL 2271
Cell
18650 cell, Certificated by UL 2580
Charger
48V, 2.0A Fast Charger
Display
3.5" Full color, High brightness, Bluetooth, Adjustable angle
Sensor
Torque and Cadence Sensor
USB Port
USB Type-C phone charge
Throttle Assist
Trigger-control, removable
Pedal Assist
3 Riding Modes x 5 PAS Levels
Walk Mode
2.9 MPH
Front Light
12V/5W 130Lux high-output integrated LED, Adjustable angle
Rear Light
Braking Indicator, turn signal, rear light steady/flash, integrated with rear rack
App & Apple Find My™
APP OTA & Find My
Drivetrain
Drivetrain
Chainrings
52T
Crankset
Aluminum Alloy, 170mm
Freewheel
7-speed, 11-28T
Chain
7-speed
Rear Derailleur
SHIMANO 7-speed
Shift Lever
SHIMANO 7-speed
Wheel
Wheel
Rims
Double-wall Aluminum Alloy
Front Hub
Aluminum alloy, nutted
Tire
20x3.0" eBike puncture resistant tires
Supports
Supports
Fenders
Steel, front and rear full coverage
Rear Rack
Aluminum Alloy, integrated with frame
Pedals
Plastic,foldable
Kickstand
Aluminum Alloy, included, rear mount
Certification
Certification
UL Certification
UL 2849
ISO Standard
ISO 4210
Geometry
Regular
Height 4'9'' ~ 6'5'' Seat Tube Length 410mm Head Tube Length 200mm Stack 531mm Reach 445mm Stand-Over Height 400mm Top-Tube Length (horizontal) 634mm Min Saddle Height 800mm Max Saddle Height 990mm Frame Set
Frameset
Frame
Aluminum Alloy
Fork
60mm Hydraulic Suspension travel with Lock-out
Speed Range
Speed & Range
*A 187-lb rider using PAS 1 in Eco mode on flat roads.
Max Speed (Default)
20 MPH
Max Speed Adjustable Range
12~28 MPH
Class
1/2/3
Throttle Range
45 Miles
Pedal Assist Range
68 Miles
Brake
Brake
Brake
Hydraulic Disc Brake
Rotors
180mm Front and Rear
Brake Levers
Aluminum Alloy, with power cutoff
Cockpit
Cockpit
Handlebar
Aluminum Alloy, Φ25.4mm, 660mm
Grips
Durable ergonomic grips, lockable
Saddle
VELOTRIC urban comfort ergonomic seat
Seatpost
Aluminum Alloy, φ30.9mm, 350mm
Clamp
Aluminum Alloy, quick release
Weight & Load
Weight & Load
Bike Weight
63lbs
Max Bike Load
450lbs
Rear Rack Load Capacity
120lbs
