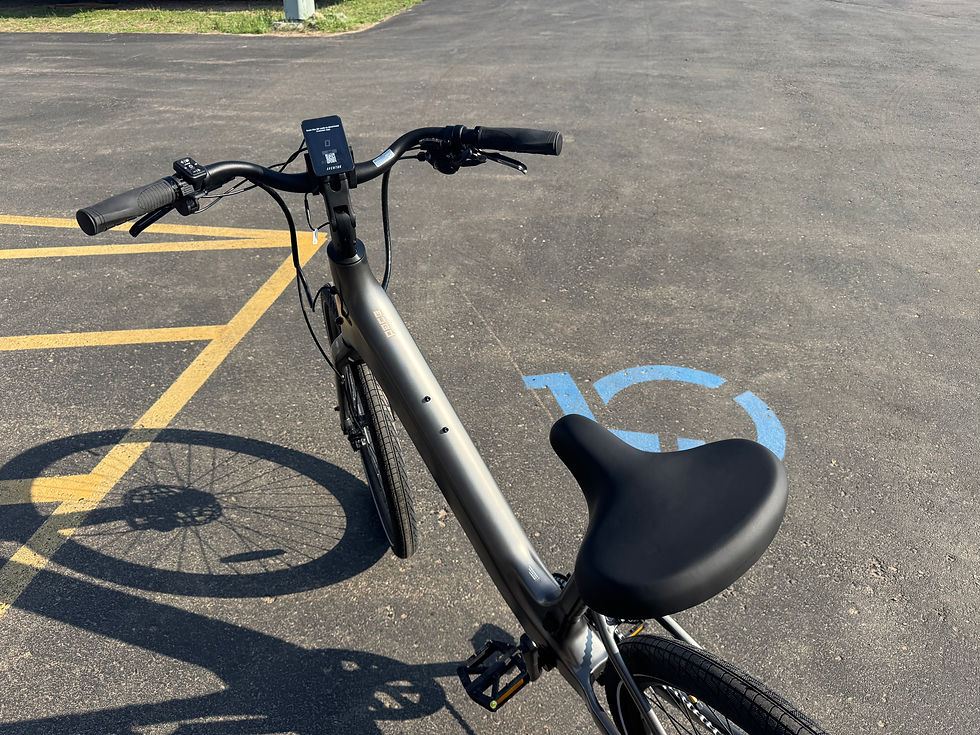

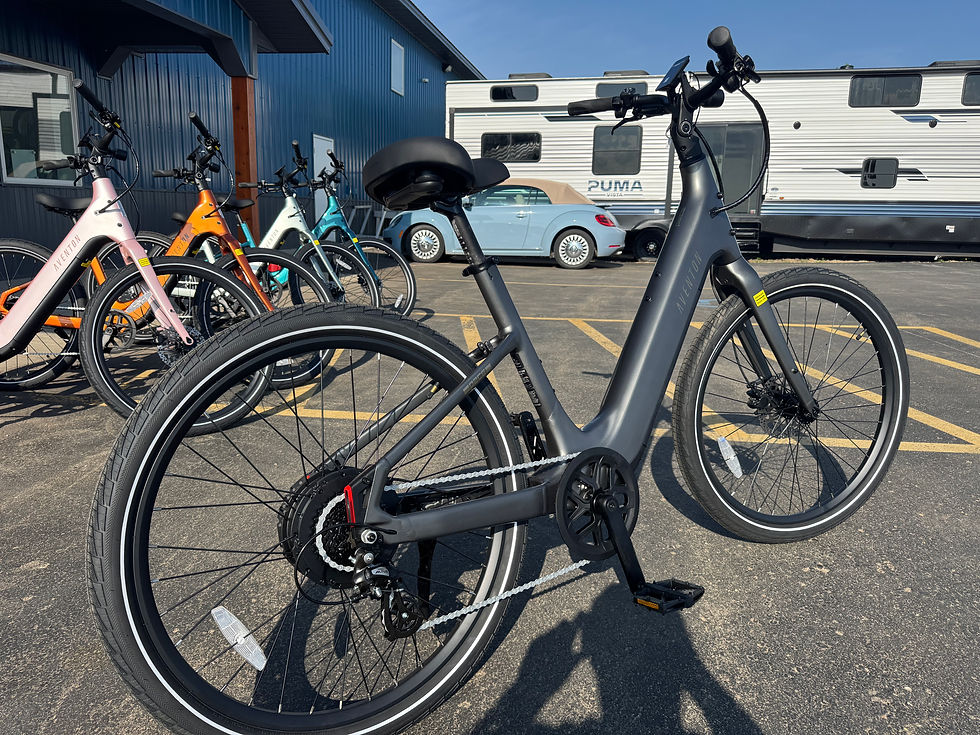

Pace 5 REC Step-Through Anvil
Meet the Aventon Pace 5 REC, a step-through electric cruiser bike built for comfort, power, and everyday confidence. Designed for riders who want a relaxed way to stay active, Pace 5 REC combines an upright riding position, swept-back handlebars, an adjustable stem, and a wide comfort saddle to reduce strain on your back, wrists, and joints. Whether you’re cruising neighborhood streets, riding paved bike paths, or heading out for casual errands, this comfort cruiser ebike helps every ride feel smooth, stable, and easy to enjoy.
Specifications
Specifications
General Info
Weight 60.48lbs
Total Weight Limit 330 lbs
Ebike Class Class 2 Ebike
Water Resistance Bike - IPX5 // Components - IPX6
Range Up to 75 Miles
Safety Certifications UL Safety Certified UL 2849
Battery Safety Certifications Certified to UL 2271
Rider Height R: 5'0" -5'9" | L: 5'9" - 6'3"
Speed Max: 28 MPH
Cockpit
Saddle Aventon 250mm wide Saddle
Seatpost Aventon Seatpost, 30.9Ø, Length: 300 mm (Size R) / 350 mm (Size L)
Seatpost Clamp 34.9mm
Handlebars Aventon aluminum swept back handlebars. 31.8mm, 620mm, 38mm rise
Stem 60mm length, Adjustable rise, 31.8 handlebar clamp
Grips Aventon Lock on grips
Headset Sealed Bearing Headset
Frameset
Frame 6061 Aluminum, Gravity Cast Front Triangle
Fork Aventon Rigid Alloy
Rear Spacing 147mm
Fork Spacing 100mm
Wheelset
Front Wheel 27.5" Double Wall Aluminum rim, 36 13g spokes, 15x100mm Thru Axle, Schrader Valve

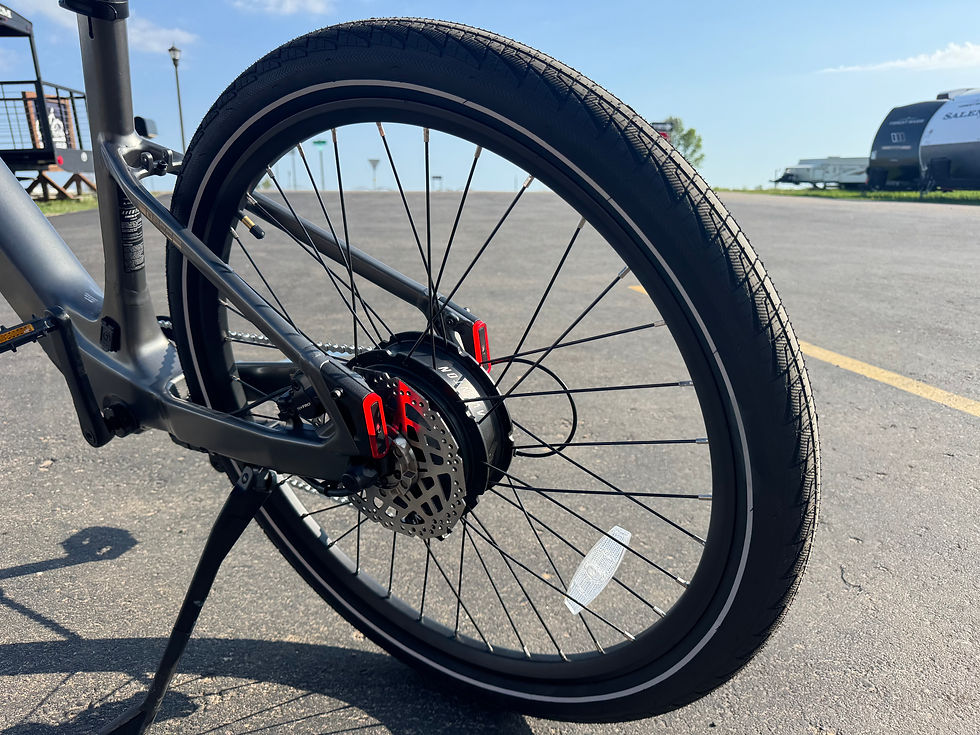

Rear Wheel 27.5" Double Wall Aluminum rim, 36 12g spokes, 750W Nutted Axle Hub Motor, Schrader Valve
Tires 27.5x2.1 33TPI
Brakes
Front Brake Tektro HD-E3120 hydraulic disc
Rear Brake Tektro HD-E3120 hydraulic disc
Front Brake Rotor 180mm 6 bolt
Rear Brake Rotor 180mm 6 bolt
Brakes
Regenerative Braking
Drivetrain
Cassette Shimano CS-HG200-8 8 speed Cassette, 12-32T
Rear Derailleur Shimano Altus RD-M310 8 Speed
Shifter Shimano 8 Speed Trigger SL-M315-8R
Chain 7/8 speed 122L
Chainring 48T
Crankset 3pc, 165mm crank arm
Bottom Bracket Square Tapered, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm
Pedals 9/16" Composite Platform
Ebike System
Motor 36V, 750W Hub Drive
Motor Torque 80Nm (96Nm in Boost Mode)
Motor Power 750W, 1188 Watt Peak (1440 watt peak in boost mode)
Display Aventon A280
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight 8.7lbs
Controller 36V, 33A
Throttle Aventon LH Handlebar Mounted
Sensors Double Sided Bottom Bracket Torque Sensor
Charger 36V Output: 42V/ 4A
Charging time from 0% to 100% 5 hours
Lights
Front and rear lights integrated
ACU Over-The-Air Updates Yes
Smart Features Regenerative Braking, Ride Tune, 4G/GPS, Unusual activity detection, E-lock, Hold Mode, Remote Notification, Apple Watch Connectivity, Keyless Battery, Cruise Control, Boost Mode, Sensor Switch
