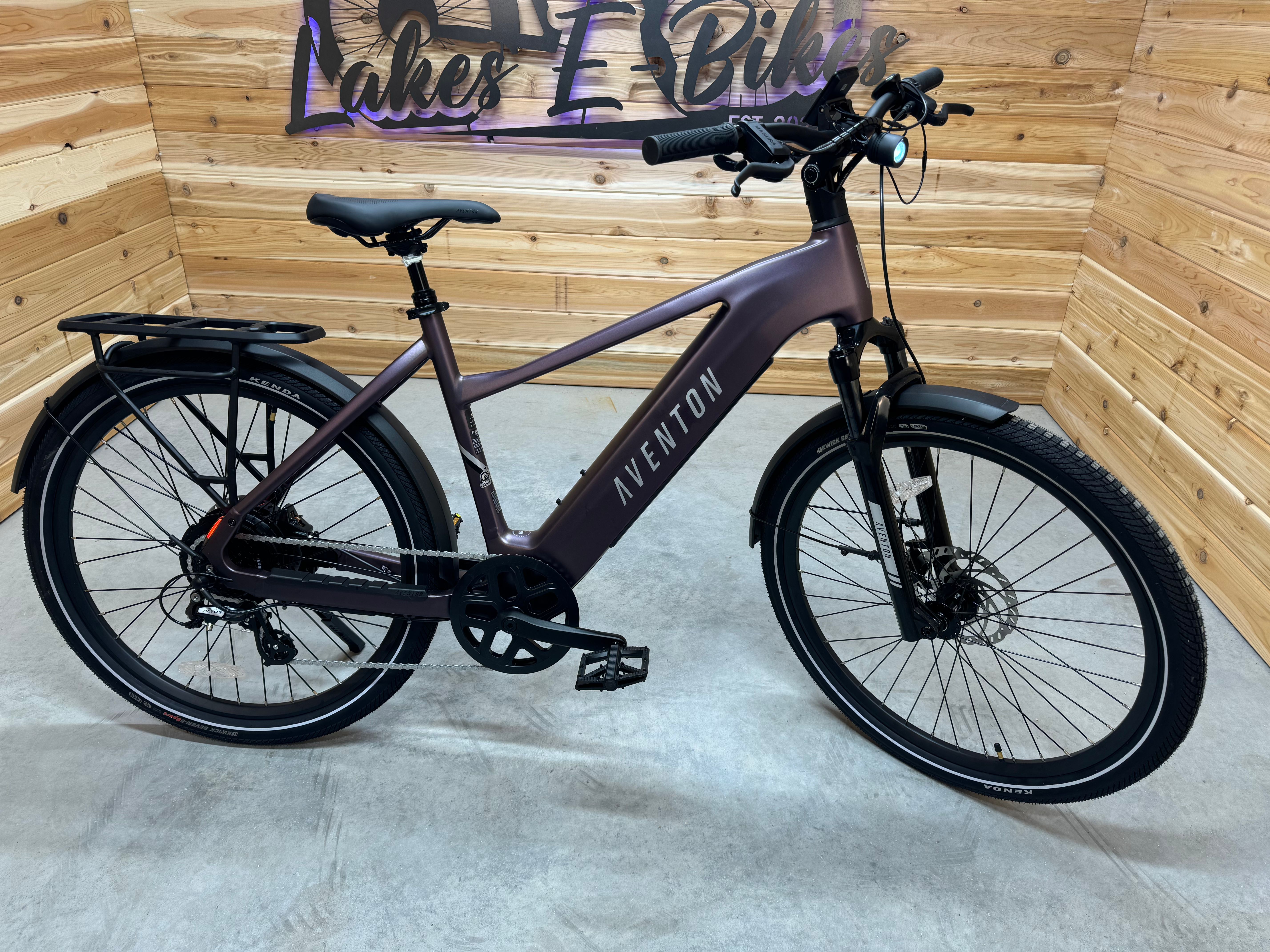

Aventon Level 3 Matte Aurora
Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3
Technical Specs
General Info
Model
Level 3 Commuter Ebike
Total Weight Limit
300 lbs 47
Box Size
61"x13"x34" 47
Rider Height
5'3" - 6'4" 47
Class
Class 2 Ebike 47
Water Resistance
IPX4 47
Range
Up to 70 Miles 47
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle 47
Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset 47
Rear Spacing
142mm 47
Fork Spacing
110mm 47
Wheelset
Front Wheel
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black 47
Rear Wheel
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black 47
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 47
Ebike System
Motor
36V, 500W (sustained), 864W (peak) 47
Motor Torque
60Nm 47
Display
Aventon BC280 47
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells 47
Battery Weight
8.7lbs 47
Controller
36V, 24A 47

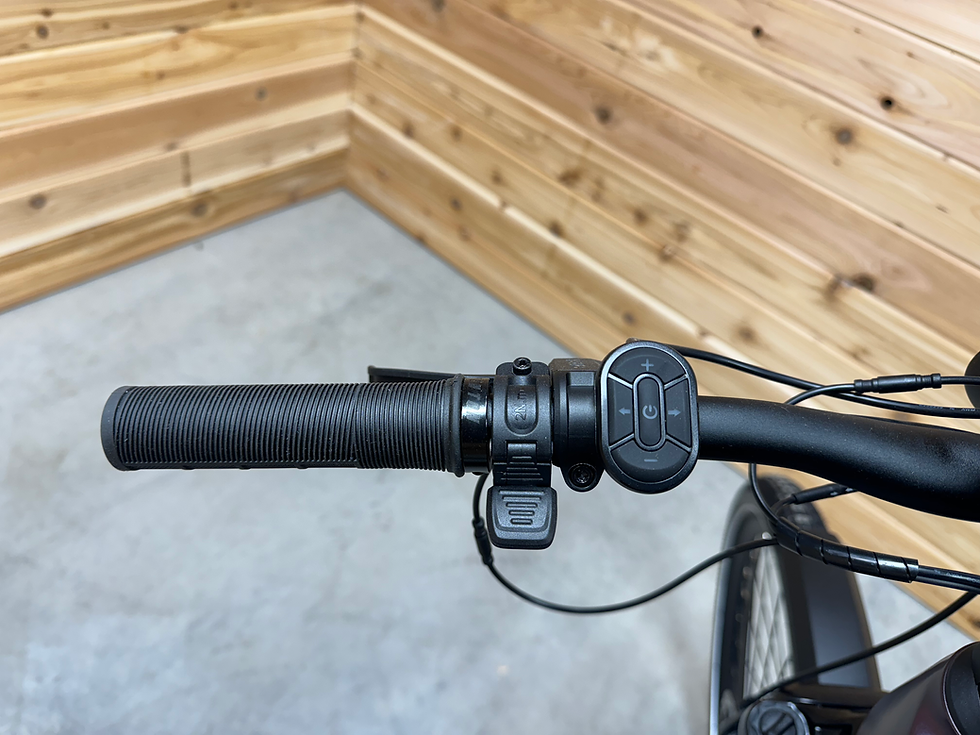

Throttle
Aventon LH Handlebar Mounted 47
Sensors
Double Sided Bottom Bracket Torque Sensor 47
Charger
36V Output: 42V/ 4A 47
Charging time from 0% to 100%
5 hours 47
Lights
Front and rear lights integrated 47
Brakes
Front Brake
Magura AT-2 Hydraulic disc brake 47
Rear Brake
Magura AT-2 Hydraulic disc brake 47
Front Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor 47
Rear Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor 47
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 47
Shifter
Shimano 8 Speed Trigger SL-M315-8R 47
Chain
7/8 speed 120L 47
Cassette
12-32T / 8 Speed Shimano CS HG200-8 47
Chainring
48T 47
Chainring BCD
104 47
Crankset
3pc, 170mm crank arm 47
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm 47
Pedals
9/16" Composite Platform 47
Cockpit
Saddle
Aventon Saddle 47
Seatpost
30.9mm Aventon Suspension Seatpost with 50mm travel 47
Seatpost Clamp
34.9mm 47
Handlebars
Aluminum 31.8mm, 680mm 47
Grips
Aventon Lock on grips 47
Headset
Sealed Bearing Headset 47
Included Accessories
Fenders
Included 47
Rear Rack
Included 47
Rear Rack Weight Limit
60lbs 47
Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
Size & Fit
RG: 5'3” - 5'10”
Inseam: 26” - 31”
LG: 5'10” - 6'4”
Inseam: 31” - 35”
