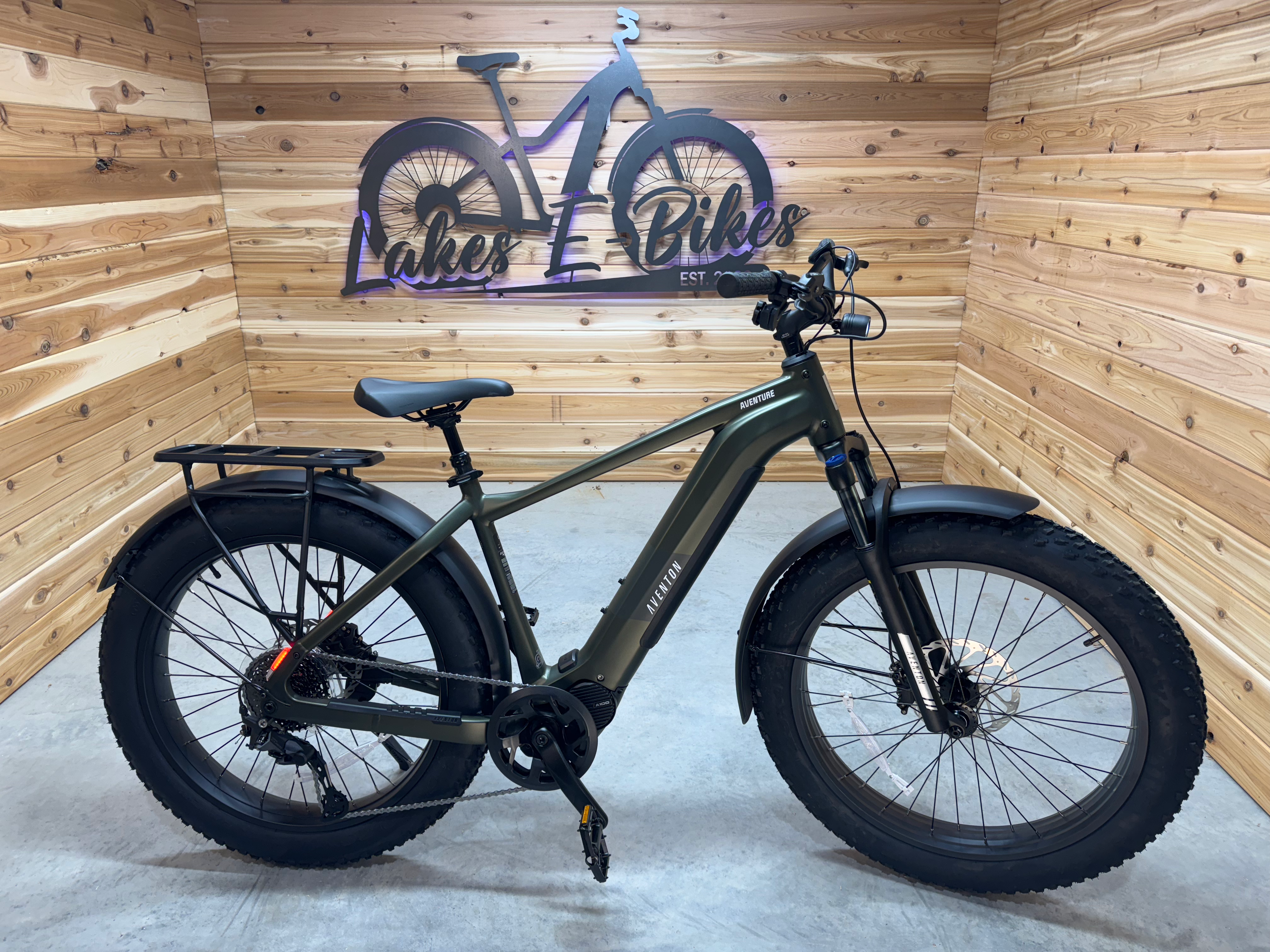

Aventon Aventure M Camo
Aventure M is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.
Technical Specs
TECHNICAL SPECIFICATIONS
General Info
Model
Aventure M Ebike
Ideal Use
All-Terrain Performance
Weight
73 lbs
Total Weight Limit
400 lbs
Rider Height
R: 5'3" -5'10" | L: 5'10" - 6'4"
Ebike Class
Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3)
Range
Up to 85 Miles
Water Resistance
Bike - IPX6 // Motor - IPX7
Battery Safety Certifications
Certified to UL 2271
Safety Certifications
UL Safety Certified UL 2849
Frameset
Fork
Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing
190mm
Fork Spacing
135mm
Frame
6061 Aluminum
Wheelset
Front Wheel
26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
Rear Wheel
26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
Tires
Inova 26x4.0 puncture resistant
Ebike System
Motor
Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Motor Torque
100Nm
Display
Aventon BC280
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
Integrated in Motor
Throttle
Aftermarket Throttle Available for Purchase
Sensors
Double Sided Torque Sensor Integrated in Motor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Integrated front and rear running lights (no brake lights)
Brakes
Front Brake
SRAM DB4 Hydraulic Disc Brakes w/o cutoff
Rear Brake
SRAM DB4 Hydraulic Disc Brakes w/o cutoff
Front Brake Rotor
Sram G2 200mm 6-Bolt
Rear Brake Rotor
Sram G2 200mm 6-Bolt
Drivetrain
Rear Derailleur
Shimano Cues 10-Speed
Shifter
E-Shifter
Chain
9/10/11 Speed 124L
Cassette
Shimano Cues 10-Speed 11-39T
Chainring
44T
Chainring BCD
N/A
Crankset
Aventon 170mm ISIS Splined
Bottom Bracket
N/A
Pedals
9/16" Alloy Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8, 720mm
Grips
Aventon Lock on grips
Headset
Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Included Accessories
Kickstand
Included, rear mount
Rear Rack
Included
Fenders
Included
Technical Overview
Aventure M comes out of the box as a Class I ebike, with pedal assist. An Aventon throttle can be purchased and easily installed on Aventure M to convert to Class 2. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components.
