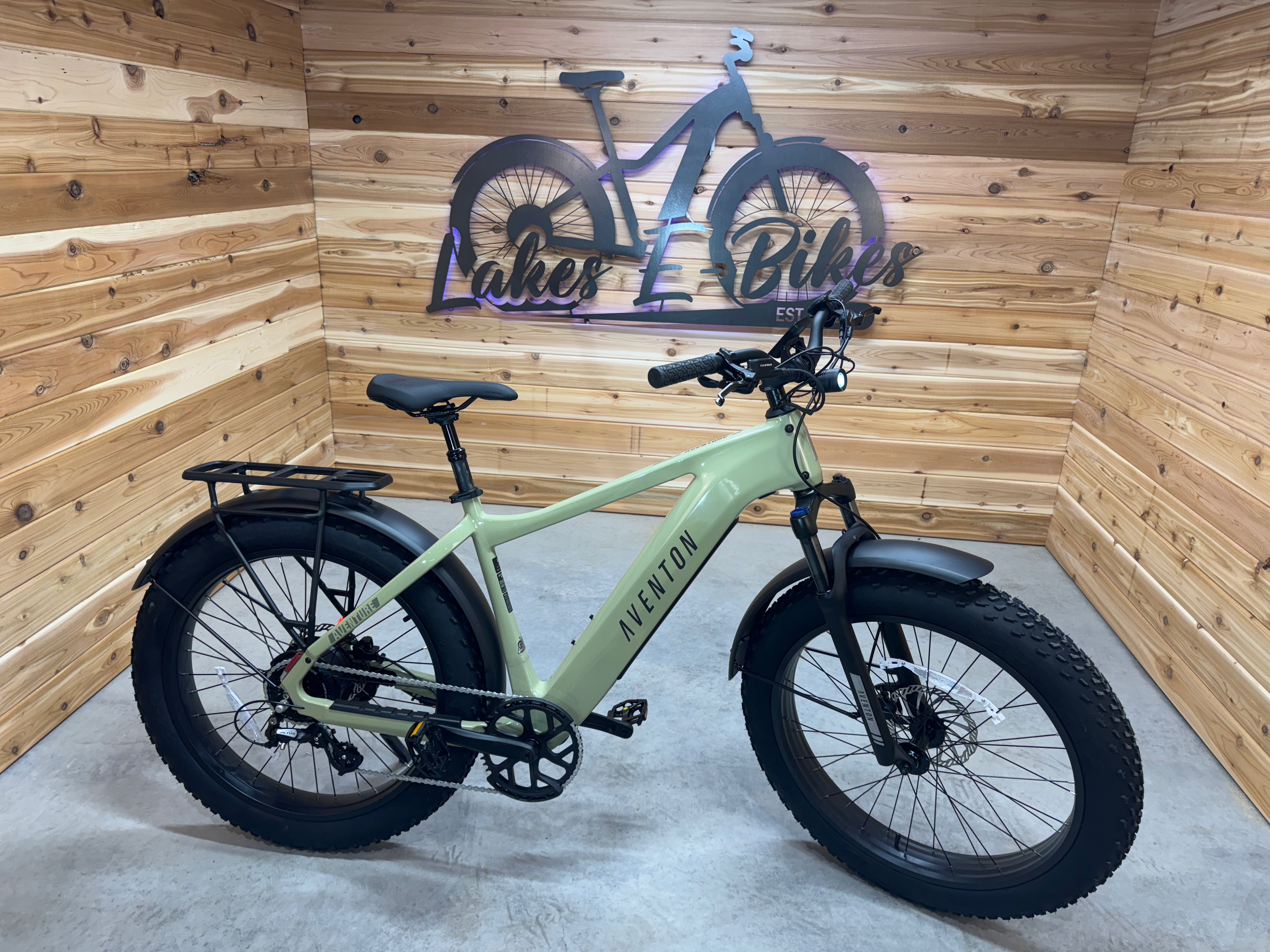

Aventon Aventure.3 Matcha
he Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G†/GPS† capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.
Technical Specs
TECHNICAL SPECIFICATIONS
General Info
Model
Aventure 3 Ebike
Weight
76 lbs
Total Weight Limit
400 lbs
Rider Height
R: 5'3" -5'10" | L: 5'10" - 6'4"
Ebike Class
Class 2 Ebike
Water Resistance
IPX5
Range
Up to 65 miles
Battery Safety Certifications
Certified to UL 2271
Ideal Use
All-Terrain
Bike Safety Certifications
UL Safety Certified UL 2849
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle
Fork
Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing
190mm
Fork Spacing
135mm
Frame Style
Step-Over
Wheelset
Front Wheel
26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
Rear Wheel
26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
Tires
Inova 26x4.0 puncture resistant
Ebike System
Speed
Class 2
Motor
36V, 750W Hub Drive
Motor Torque
80Nm
Motor Power
750W (1188 Peak)
Display
Aventon BC280
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
36V/33A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Brakes
Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor
Tektro 180mm 6 bolt
Rear Brake Rotor
Tektro 180mm 6 bolt
Drivetrain
Rear Derailleur
Shimano Altus 8-Speed
Shifter
Shimano 8-Speed Trigger
Chain
7/8 Speed 118L
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chainring
48T
Chainring BCD
N/A
Crankset
3pc, 170mm crank arm
Bottom Bracket
100x177 Square Taper, Double Sided Torque sensor bottom bracket
Pedals
9/16" Alloy Platform
Cockpit
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp
34.9mm
Handlebars
Aluminum 31.8mm, 680mm
Grips
Aventon Lock on grips
Headset
Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
Included Accessories
Kickstand
Included, rear mount
Rear Rack
Included
Fenders
Included
Technical Overview
The Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX5 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
Size & Fit
Rider Height
R: 5'3" -5'10" | L: 5'10" - 6'4"
